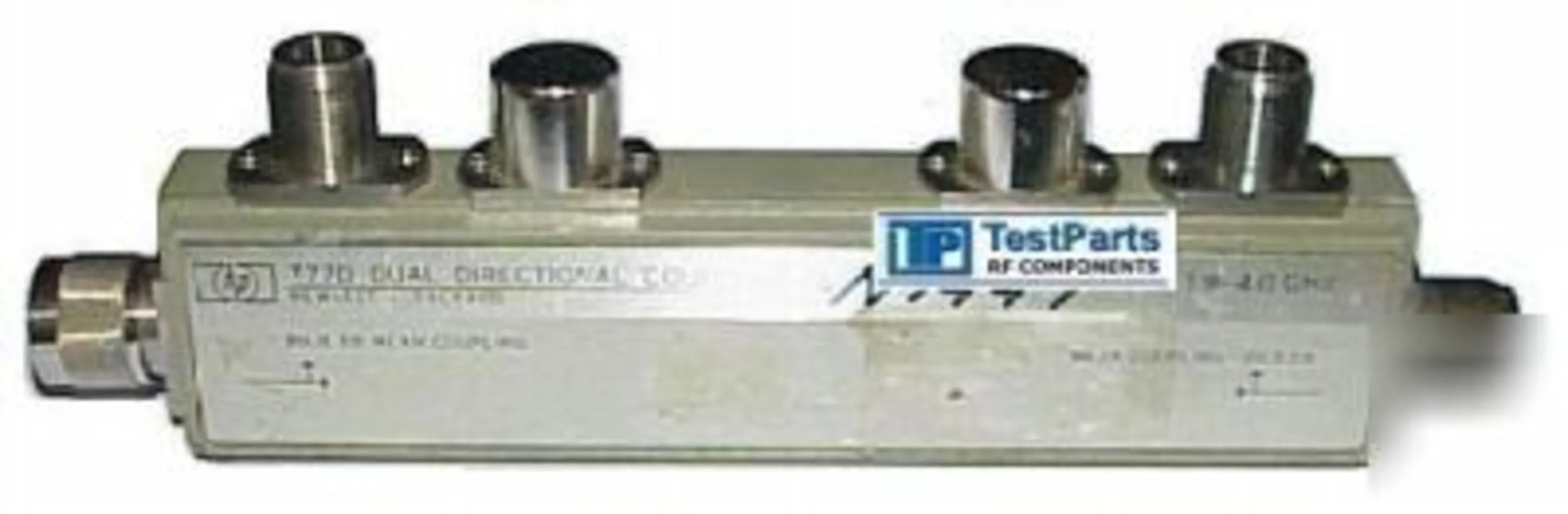

• RF دایرکشنال کوپلر از 1.9 تا 4GHz
• Superior RF Performance
• Nominal Coupling and Variation: 20 ±0.4 dB
• Directivity: >30 dB
• Maximum SWR: 1.2
• Insertion Loss: <0.75 dB
• Power Ratings
• Power Rating Average, Peak: 50 W, 500 W
• Dimensions
• Dimensions: 225.4 mm L x 63.5 mm H x 28.6 mm W (8.88 in x 2.50 in x 1.13 in)
