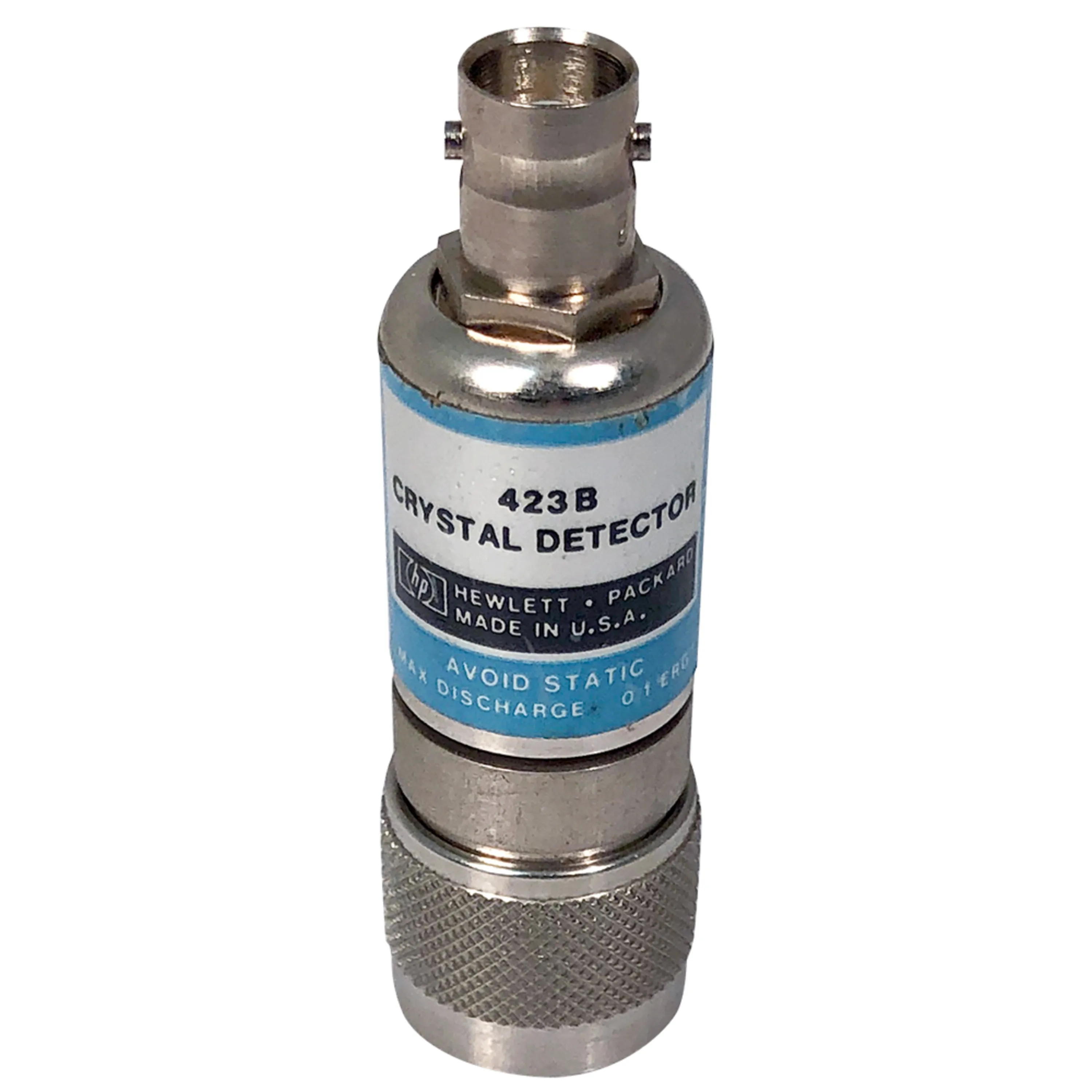

کریستال دتکتور HP 423B

معرفی

HP 423B

بررسی تخصصی

• Frequency response: ±0.3 dB

• Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz)

• Low-level sensitivity: > 0.5 mV/uW

• Output Polarity: Negative

• Maximum operating input power: 200 mW

• Typical short-term maximum input power (< 1 minute): 1 W

• Noise: < 50 uV
