فرکانس متر HP381A

Features:

• Frequency Range: 10 Hz - 80 MHz
• Sensitivity: 25mV RMS - 30 Hz to 20 MHz, 50mV RMS - 10 Hz to 80 MHz
• Accuracy: 1 count, 1 time base error
• Display: 7 LED digits

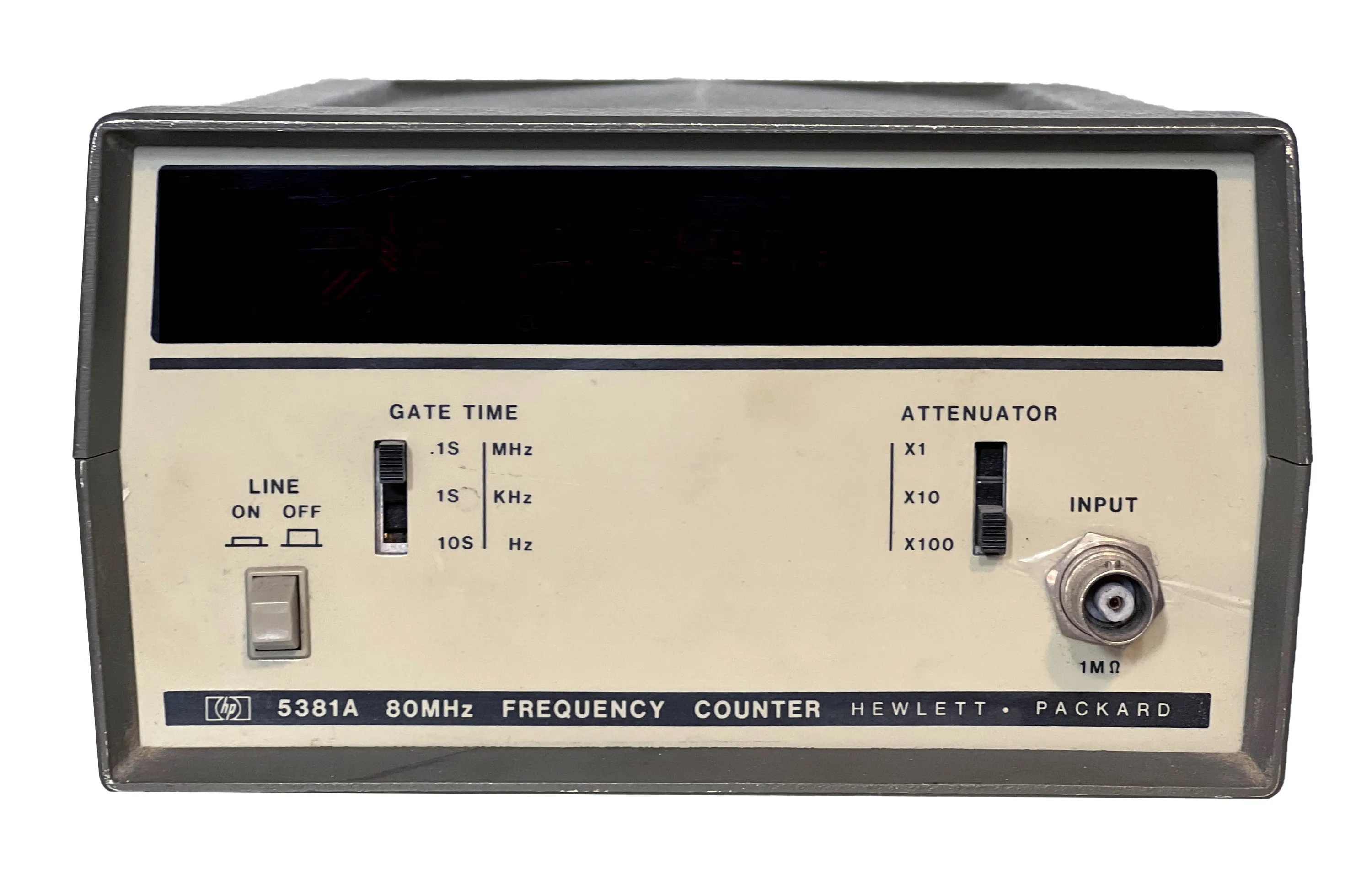

The HP 5381A frequency counter is a superb price/performance combination unit. It is designed to deliver reliable, high quality operation in such diverse areas as: production line testing, service and calibration (two-way radio and test equipment), frequency monitoring, education and training. The Agilent 5381A employs the direct counting technique and, with 7 digits, offers resolution of 10 Hz in 0.1sec, 1 Hz in 1 sec, and 0.1 Hz in 10sec.
