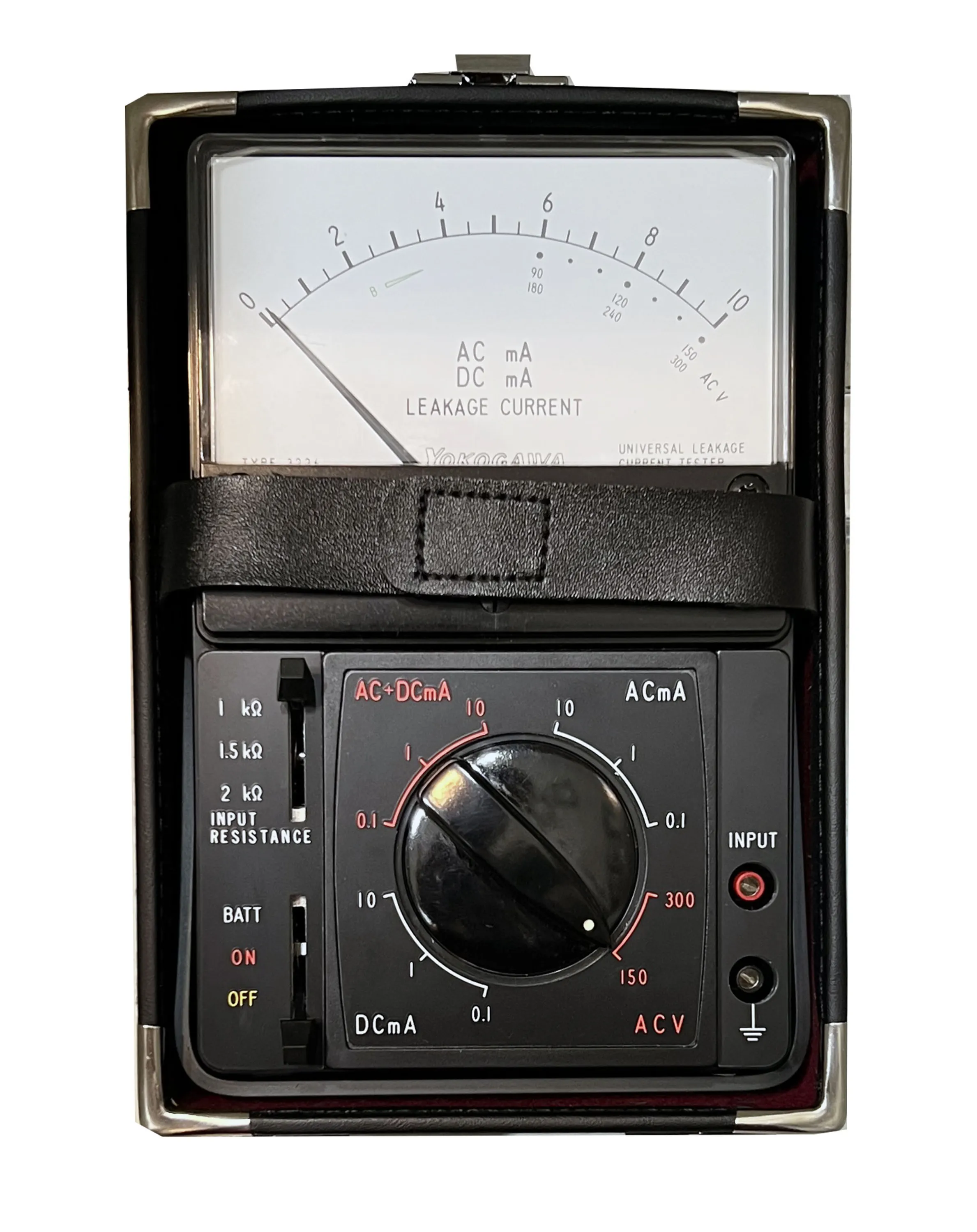

نشتی یاب جریان YOKOGAWA 3226

DC current - 0.1, 1. 10mA, AC current - 0.1, 1, 10mA, (DC + AC) current - 0.1, 1, 10mA, AC Voltage - 150, 300V (50 and 60 Hz)

±2.5% of full scale value on current and voltage range

Current range: 1kΩ 1.5kΩ , and 2kΩ Voltage range; More than 100kΩ

20 Hz to 5 kHz

Two 9V dry cells (JIS C8501 Type 006P or NEDA 6F22), Continuous Operating Time; Approx. 290 hours

Up to 30mA AC for one minute will not damage instrument oh current ranges

±0.2% of rated value/°C against temperature variation of 20± 10°C

More than 20 MΩ at 500 V DC between terminals and case

1500V AC 50Hz for one minute between electrical circuit and case

Approx. 190 x 124 x 90 mm (7.48 x 4.88 x 3.54") not including handle

Approx. 1.0 kg (2.2 lbs)

Carrying Case (322400) 1 pc
Carrying Case (B9646BU) 1 pc
Instruction Manual 1 copy
Test Lead (289803) 1 pc.
Test Lead (B9646CM) 1 pc.
