P6100

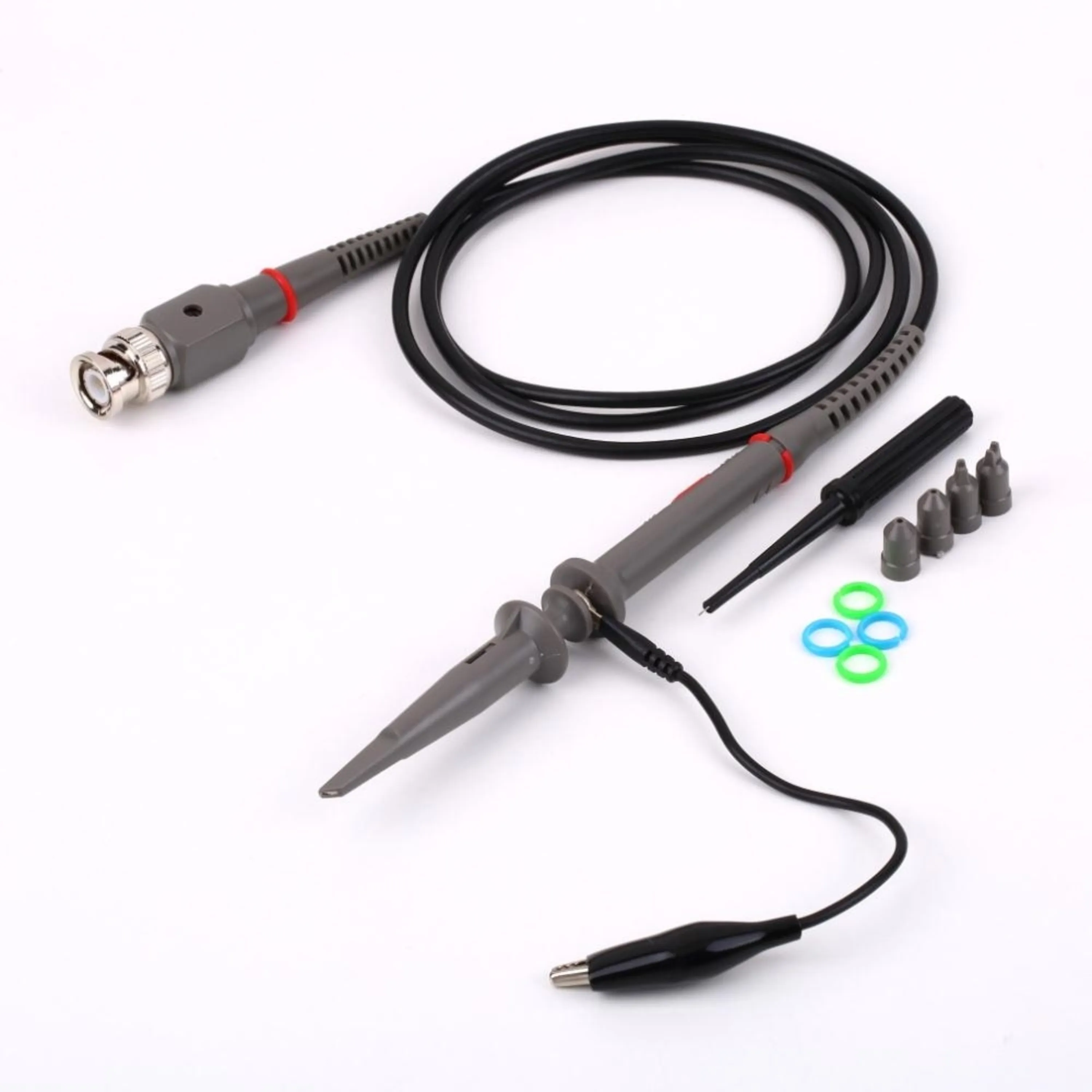

پراب اسیلوسکوپ P6100
پراب اسیلوسکوپ P6100
پراب اسیلوسکوپ 100MHz
Attenuation ratio: x1 and x10
Bandwidth: 6MHz (x1) and 100MHz (x10)
Input resistance: 1MΩ (x1) and 10MΩ (x10)
Input capacitance: 90pF (x1) and 18pF (x10)
Compensation range: 10-35pF (x10)
Rise time: 58ns (x1) and 3.5ns (x10)
Working voltage: 300Vp-p (x1) and 600Vp-p (x10)
Operating temperature range: -14°F to +122°C (-10°C to +50°C)
Length: 4 feet
Weight: 0.286 lbs.
